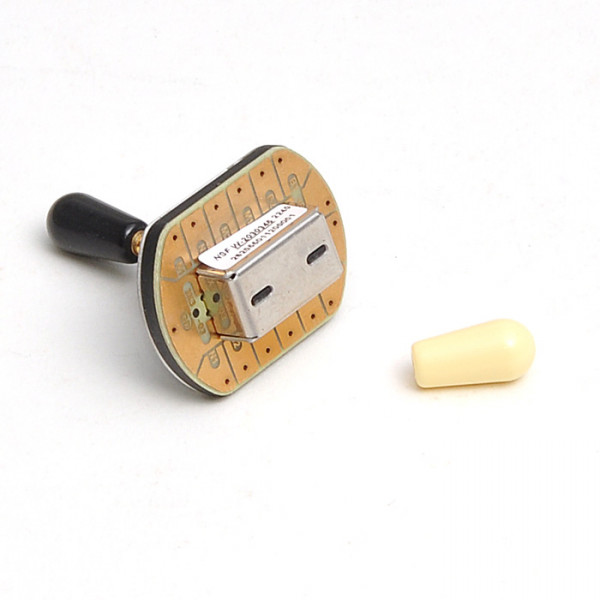

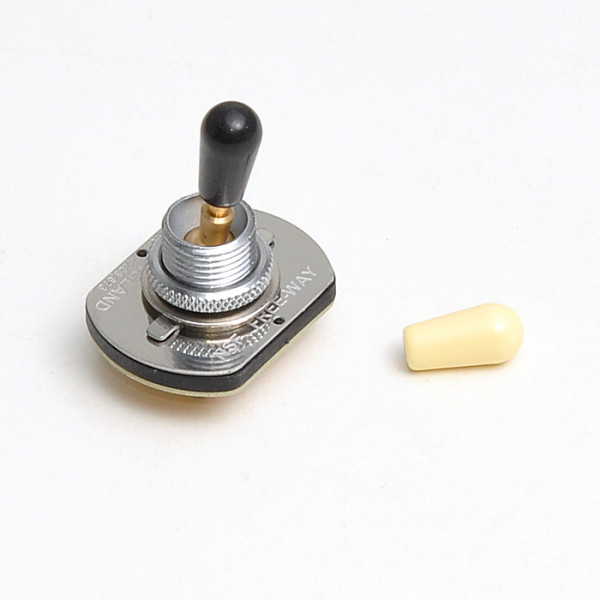

6-Way Freeway Switch 3x3-03 Model

Descripción

6 position Multi-Function Free-Way Switch providing circuits for: coil-tapping; three pickup guitars; piezo pickups; HSH and HSS schemes in particular. It replaces a standard 3-way toggle switch and has 15 terminal connections providing flexibility for all kinds of variations on the above schemes and scope for custom circuit design as well. Originally designed for the Jimmy Page Les Paul Custom. Can be used in most guitars.
Threaded portion: ca. 10mm
Thread diameter: ca. 12mm
Dimensions: 24mm x 32mm x 10mm depht

Installation Guide (PDF)
Wiring Diagrams (PDF)
Cream Knob
No.Art. 37007
36,50 EUR
Black Knob
No.Art. 37008
36,50 EUR
Gold plated with knob
No.Art. 37009
39,80 EUR
Todos los precios incluyen el IVA alemán actual (19%).
