Megaswitch E

  • 17008
  • 17,90 €

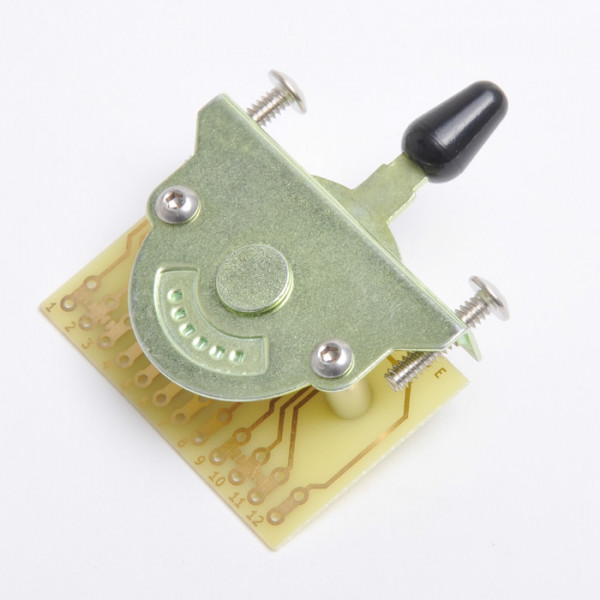

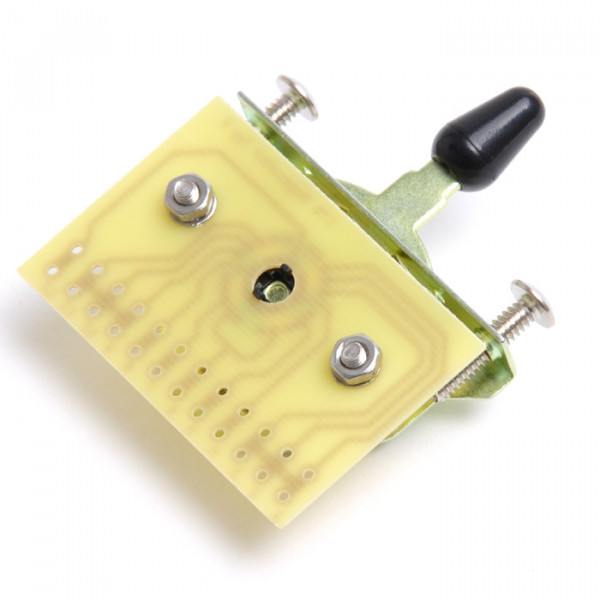

    • 5-way switch for 3- pickup combinations of singlecoils or humbuckers or for a 2 humbucker combination. Black knob and wiring instructions (in german language) included. The body dimensions are: 48mm (lenght) x 35mm (depht) x 12mm (widht).

    SetUp with 3 Singlecoils
    Position 1: neck pickup
    Position 2: neck/middle
    Position 3: neck/bridge
    Position 4: middle/bridge
    Position 5: bridge pickup
    Wiring
    1. to 4. no connection
    5. neck pickup hot and tone pot for neck pickup
    6. middle pickup hot
    7. bridge pickup hot and tone pot for bridge pickup
    8. output
    9. to 12. no connection
    This wiring requires capacitors for each tone pot.


    SetUp Singlecoil/Singlecoil/Bridgehumbucker
    Position 1: neck pickup
    Position 2: neck/middle
    Position 3: neck pickup/splitted humbucker (neck coil)
    Position 4: splittet humbucker (bridge coil)/neck pickup
    Position 5: bridge pickup
    Wiring
    1. and 8. output
    2. ground
    3. no connection
    4. bridge pickup, serial connection between both coils
    5. neck pickup hot
    6. middle pickup hot
    7. bridge pickup hot
    9. to 12. no connection


    SetUp with Humbucker/Singlecoil/Humbucker
    Position 1: neck pickup
    Position 2: splitted neck pickup (neck coil) / middle pickup
    Position 3: splitted neck pickup (neck coil) / splitted bridge pickup (bridge coil)
    Position 4: splitted bridge pickup (neck coil) / middle pickup
    Position 5: bridge pickup
    Wiring
    1. and 8. output
    2. ground
    3. no connection
    4. bridge pickup, serial connection between both coils
    5. neck pickup hot
    6. middle pickup hot
    7. bridge pickup hot
    9. no connection
    10. ground
    11. connected with 10
    12. neck pickup, serial connection between both coils

    SetUp with 2 Humbuckers
    Position 1: bridge pickup
    Position 2: splitted bridge pickup
    Position 3: splitted neck pickup/splitted bridge pickup
    Position 4: splitted neck pickup
    Position 5: neck pickup
    Wiring
    1. ground
    2. connected with 1
    3. no connection
    4. bridge pickup, serial connection between both coils
    5. neck pickup hot
    6. no connection
    7. bridge pickup hot
    8. output
    9. no connection
    10. ground
    11. connected with 10
    12. neck pickup, serial connection between both coils
