Schaller 5-Way Rotary Megaswitch E
€31.50 *
-
Description

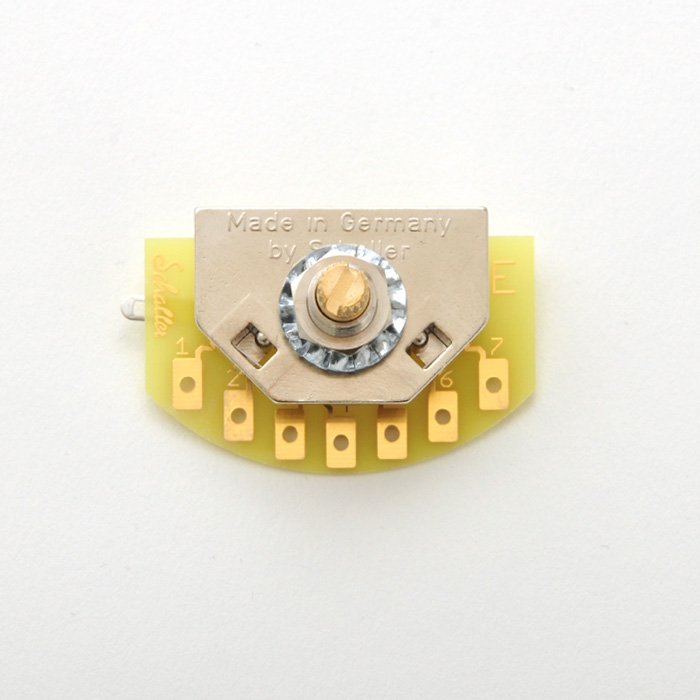

5-way rotary switch for pickup combinations of 3 singlecoils or humbuckers or for a 2 humbucker combination. The body dimensions are: 48mm x 30mm and 18mm depth. The threaded portion is 13mm tall. Required mounting hole diameter: 8mm. Shaft diameter: 6mm.
- Mounting depth: ca. 18mm
Further Information
SetUp 3 Singlecoils
Position 1: bridge pickup
Position 2: middle/bridge
Position 3: neck/bridge
Position 4: neck/middle
Position 5: neck pickup
Wiring for 3 Singlecoils
1: middle pickup hot
2: neck pickup hot neck hot wire
3: output
4:
5:
6 is patched with 7: bridgepickup hot
2: neck pickup hot neck hot wire
3: output
4:
5:
6 is patched with 7: bridgepickup hot
SetUp Humbucker/Singlecoil/Singlecoil
Position 1: bridge pickup
Position 2: middle pickup/splitted humbucker
Position 3: neck pickup/splitted humbucker
Position 4: neck/middle
Position 5: neck pickup
Wiring for HSS
1: middle pickup hot
2: neck pickup hot
3: output
4: ground
5:
6: inner coil bridge pickup hot and outer coil "cold"
7: outer coil bridge pickup hot
1: middle pickup hot
2: neck pickup hot
3: output
4: ground
5:
6: inner coil bridge pickup hot and outer coil "cold"
7: outer coil bridge pickup hot
SetUp Humbucker/Singlecoil/Humbucker
Position 1: bridge pickup
Position 2: middle pickup/splitted bridge pickup
Position 3: splitted neck pickup/splitted bridge pickup
Position 4: splitted neck pickup/middle pickup
Position 5: neck pickup
Wiring for HSH
1: middle pickup hot
2: outer coil hot neck pickup
3: output
4: ground
5: neck pickup hot wire inner coil and "cold" wire outer coil
6: bridge pickup hot wire inner coil and "cold" wire outer coil
7: bridge pickup hot wire outer coil
2: outer coil hot neck pickup
3: output
4: ground
5: neck pickup hot wire inner coil and "cold" wire outer coil
6: bridge pickup hot wire inner coil and "cold" wire outer coil
7: bridge pickup hot wire outer coil
SetUp 2 Humbuckers
Position 1: bridge pickup
Position 2: splitted bridge pickup
Position 3: splitted neck pickup/splitted bridge pickup
Position 4: splitted neck pickup
Position 5: neck pickup
Wiring for HH
1:
2: neck pickup hot wire outer coil
3: output
4: ground
5: neck pickup hot wire inner coil and "cold" wire outer coil
6: bridge pickup hot wire outer coil and "cold" wire inner coil
7: bridge pickup hot wire inner coil
2: neck pickup hot wire outer coil
3: output
4: ground
5: neck pickup hot wire inner coil and "cold" wire outer coil
6: bridge pickup hot wire outer coil and "cold" wire inner coil
7: bridge pickup hot wire inner coil
